The through type cleaning machine uses a specially designed chain and conveyor belt to transport workpieces, and has functions such as cleaning, rinsing, blowing water, drying, and oiling. As a novel continuous conveying cleaning equipment, the through type cleaning machine manually places the workpiece on the conveyor belt. The workpiece automatically passes through various cleaning rooms for cleaning, and the cleaning solution automatically flows into the return tank. After purification treatment, it can be recycled and equipped with a mist recovery device, which can be used without external pipelines.

通過式清洗機具有多工位，功能全，結構合理，操作方便，清洗效果好的優點，對于流水線零件的清洗，改善勞動環境，提高清洗質量有重要意義。其使用范圍廣泛，適用于各種五金零件，壓鑄件，液壓件，齒輪，軸承，汽車零部件等各種制造業。

The through type cleaning machine has the advantages of multiple workstations, full functionality, reasonable structure, convenient operation, and good cleaning effect. It is of great significance for the cleaning of assembly line parts, improving the labor environment, and improving cleaning quality. It has a wide range of applications and is suitable for various manufacturing industries such as hardware parts, die-casting parts, hydraulic components, gears, bearings, automotive components, etc.

通過式清洗機工作前先檢查清洗液的配方濃度和配方比例是否合適，水箱液面高度是否夠；分別調定清洗液箱和漂洗液箱的電接點溫度計為50-60度；用鑰匙將電源控制開關，置于開位置；開啟加熱器，使其開始自動加溫；開啟浮油排除裝置開始浮油排除，因此式水泵未開啟，水面平靜，排油效果好。

Before working, check whether the formula concentration and proportion of the cleaning solution are appropriate, and whether the liquid level in the water tank is high enough; Set the electric contact thermometer of the cleaning solution tank and rinsing solution tank to 50-60 degrees respectively; Use the key to place the power control switch in the on position; Turn on the heater to start automatic heating; Turn on the floating oil removal device to start the floating oil removal, so the water pump is not turned on, the water surface is calm, and the oil removal effect is good.

等溫度升到預定值后即開始工作，操作者根據需要選擇開關，按每個單動按鈕，使水泵，吸霧，輸送等全部動作。當機器運行后，操作工人便可以在裝料口不斷地把零件裝載輸送網帶，清洗，漂洗，吹干，輸出，在卸料口取下清洗好的零件。

After the temperature rises to the predetermined value, the operation begins. The operator selects the switch according to needs and presses each single action button to activate the water pump, mist suction, transportation, and other functions. After the machine is running, the operator can continuously load the parts onto the conveyor belt at the loading port, clean, rinse, blow dry, output, and remove the cleaned parts at the unloading port.

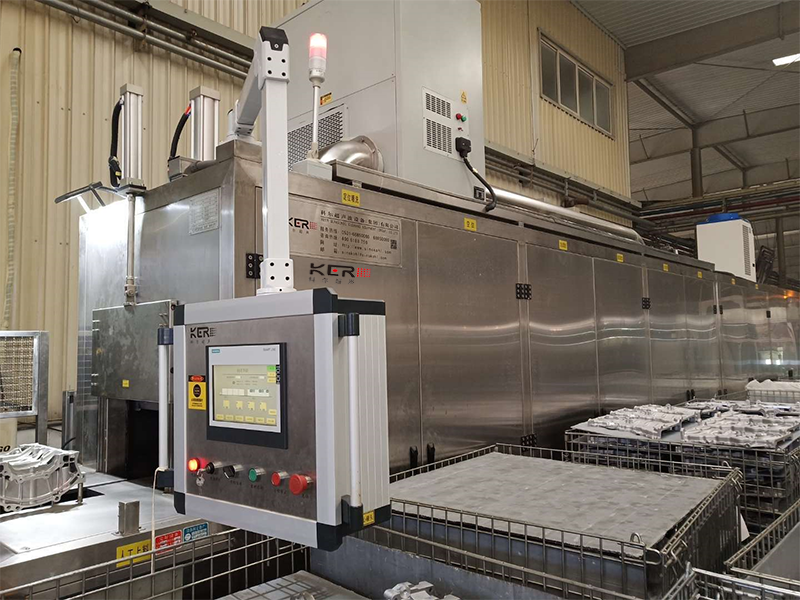

通過式清洗機

Through type cleaning machine

通過式清洗機清洗工作結束后，當零件取下，按停止按鈕，全機停止。清洗液應定期添加自來水和一定比例的金屬清洗液以補充消耗，使液面保持在一定高度，如果清洗效果達不到工藝要求時，應全部更換清洗液。清理設備污垢后，關閉電源。

After the cleaning work of the through cleaning machine is completed, when the parts are removed, press the stop button to stop the entire machine. The cleaning solution should be regularly supplemented with tap water and a certain proportion of metal cleaning solution to replenish consumption, keeping the liquid level at a certain height. If the cleaning effect does not meet the process requirements, all cleaning solutions should be replaced. After cleaning the dirt on the equipment, turn off the power.
